Lake People G103-P mkII

Productbeschrijving

Text by Lake People

Lake People G103-P MKII Broadcast Version delivers professional headphone amplification for demanding broadcast applications

Lake People introduces a special Broadcast Version of its popular G103-P MKII headphone amplifier. Like the standard version, the new model provides high-quality, transparent amplification for almost every type of headphones at any impedance. The G103-P MKII Broadcast Version is optimized for uninterrupted operation, so a power switch is unnecessary. Special mounting options are available for all G series models from Lake People: the compact amps can be installed under a desk or on a microphone stand. With these options, the precise, authentic playback quality is available wherever it is required in demanding broadcast and studio applications.

The Lake People Phone-Amp G103-P MKII is a stereo headphone amplifier for broadcast, recording and livesound. Different to most comparable models the overall gain may be altered with the aid of internal jumpers to better match specific headphone characteristics. Due to this technique, this headphone amplifier is able to drive nearly all existing headphones from 8 … 600 ohms load impedance. Because of its noise- and THD-optimized circuitry layout, G103-P MKII covers high quality demands.

In spite of its compact dimensions, G103-P MKII offers optimum flexibility and high power. Reliability even under rough or improper handling conditions has been another important goal of development. Thus, the unit is absolutely long-term short-circuit proof.
In addition, the G103-P MKII is equipped with filters to prevent overload by inaudibly low and high frequencies.

The case of G103-P MKII is made of black anodized aluminium, including the front- and back panels. This provides high mechanical stability and resistance against rough handling. The cases surfaces are providing excellent electrical conductivity for optimum EMC characteristics.

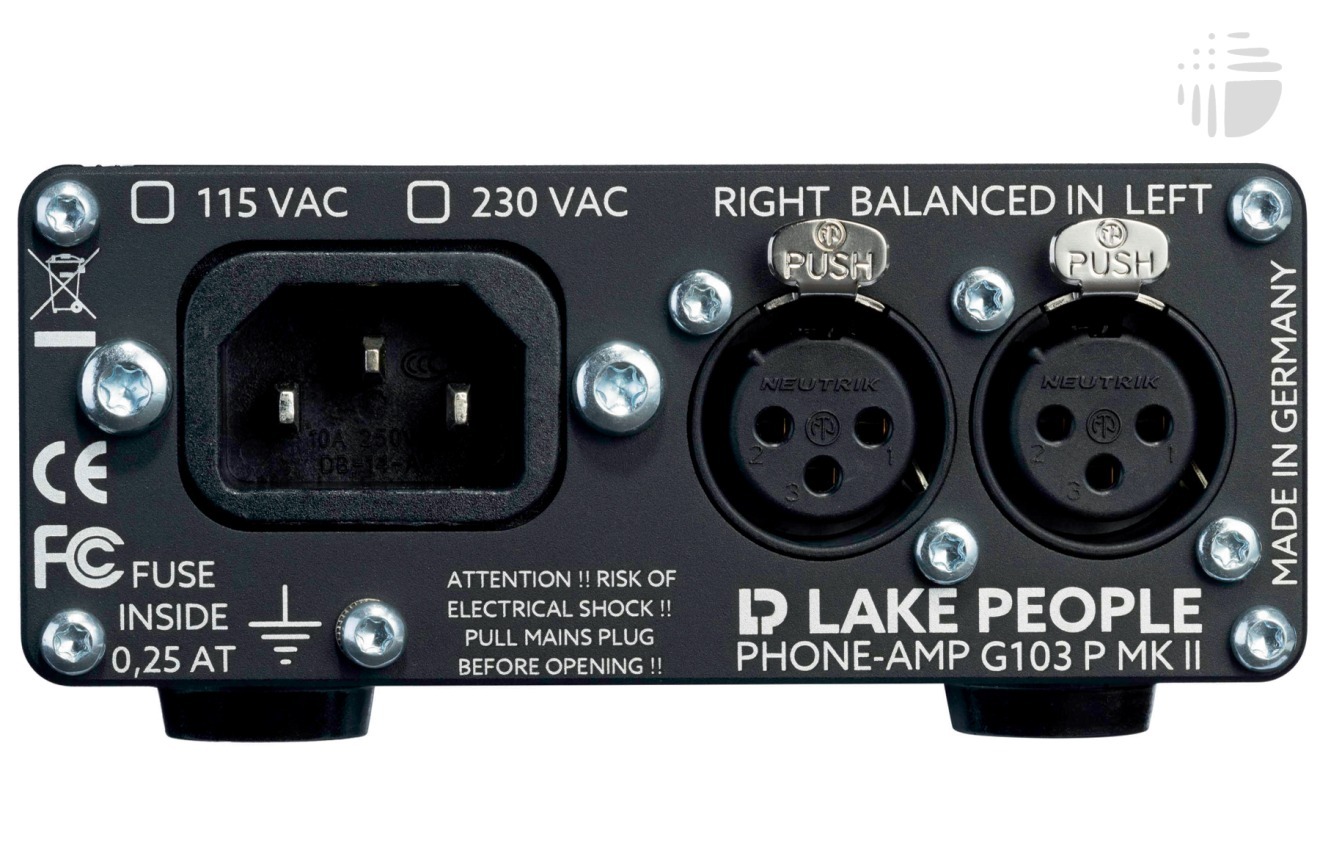

Mains is connected via a three-pin IEC/CEE socket and a matching three-wire mains cable with Central Europe-type mains connector. The mains cable may vary to fit the demands of different markets The unit is factory-set to a mains voltage of 230 V AC.

Mains voltage may vary between 190 and 250 without any effect on flawless operation. The built-in mains transformers provide the internal supply voltages of approx. +/- 25 V.
