Lake People F388 2-Q

Productbeschrijving

Text by Lake People

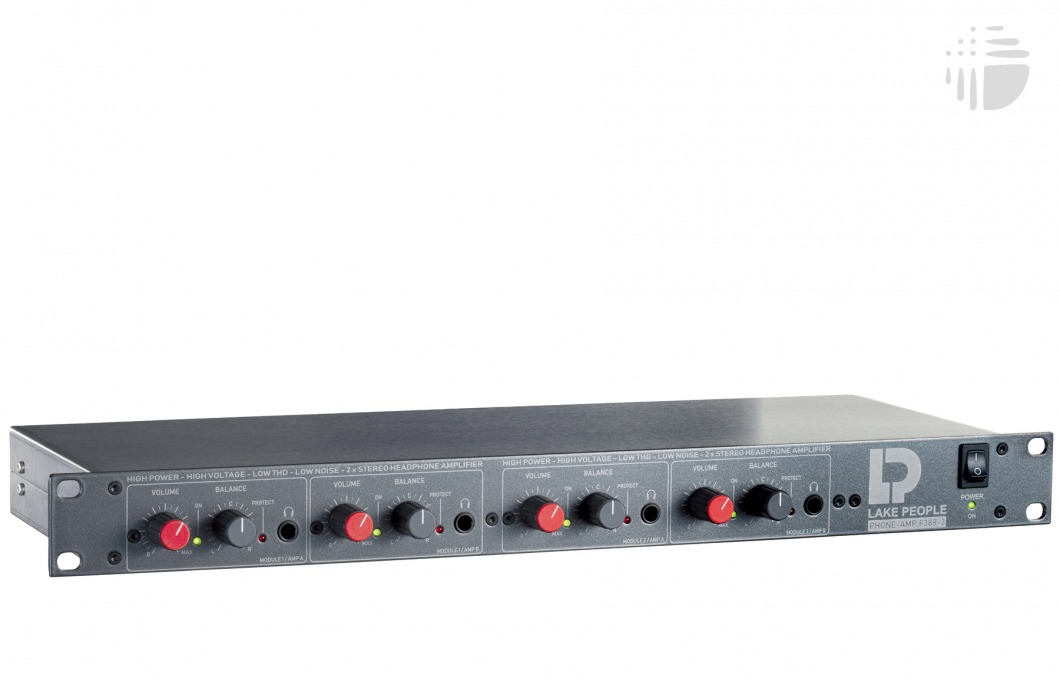

The F388-2-Q is a powerful and durable headphone amplifier in 19 "format with two + two balanced stereo inputs on the back. It feature 4 identical amp section each with a volume and a balance control. The stereo signal from module 1 can be looped through to module 2 with a link switch. Internally, Pre-Gain can be set to -12 / -6 / 0 / +6 / +12 dB to adapt the amp to virtually every source - headphone combination. The amplifiers feature a very low output impedance in order to drive low-impedance headphones without any coloration. Due to the unusual high internal operating voltage also with high-impedance headphones a more than adequate sound level is maintained.

The features:
- electronically balanced inputs
- four gains switchable: -4 / +2 / +8 / +14 dB
- NF trammission band exceeds 150 kHz (-3dB)
- Alps volume control with good channel balance and low crosstalk
- powerful amplifiers

Because of ist variable gain structure G103 is best suited to drive low- to high impedance headphones (16 … 600 Ohm)
The inputs are situated on the rearpanel, they are equipped with electronically balanced XLR connectors. A rotary pot on the frontpanel is provided for level control. G103 is equipped with two headphones outputs with 1/4" jacks. The unit offers a built-in power supply with IEC/CEE
socket. The complete case, front and back panels are made of black anodizes aluminium.

Technical Data Balanced inputs: 2 x XLR (L / R)
Impedance: 10 kohms
Amplifier Channels: 2 (Stereo)
Nom. input level: + 6 dBu
Gain: -4 / +2 / +8 / +14 dB, selectable
Frequency range: 5 Hz ... 150 kHz (-3 dB)
Dynamic range: > 125 dB (A-wtd)
Noise: < -98 dBu (A-wtd)
THD+N: < 0,002 % (800mW / 100R)
Crosstalk: < -70 dB (@ 15 kHz)
Max. output level: > 17.8 Veff in 600 ohms = 530 mW
> 16.0 Veff in 300 ohms = 850 mW
> 13.7 Veff in 200 ohms = 940 mW
> 7.5 Veff in 50 ohms = 1130 mW
> 3.7 Veff in 16 ohms = 890 mW
Outputs: 2 x 1/4" phone jacks
Internal voltages: +/- 15 or +/- 30 V, selectable
Power supply: 115 / 230 VAC / 8 VA
Case Dimensions: 108 x 49 x 145 mm (W x H x D)
Front and Back: 2 mm brushed Stainless steel
Case Material: black anodized Aluminium
