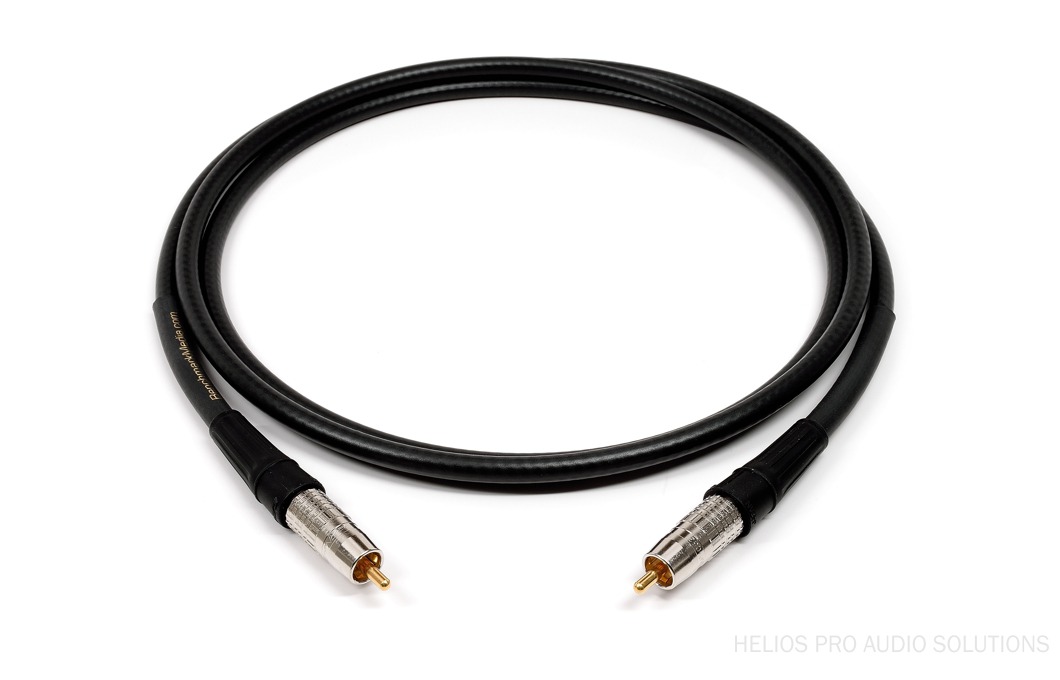

Benchmark Media 75 Ohm Coaxial Cable

Productbeschrijving

Length: 1,0m

Constructed with Belden 1694A, low-loss, low-jitter, precision impedance coax. This cable is ideal for SPDIF, AES, and multiplexed digital audio formats. For comprehensive broadband shielding, these coaxial cables feature a dual (foil and braid) shield, to protect against high frequency RF and EMI noise and interference. All electrical and mechanical characteristics of this cable are manufactured to precision tolerances and specifications to minimize attenuation, internal reflections, and impedance mismatches. As a result, pulse rounding, bit-errors, and jitter from the cable interconnection are minimized. We use Canare RCA connectors for the best possible impedance match with 75-Ohm coax cable. These precision cables are also well-suited for unbalanced analog audio connections.

Applications:
Digital Audio
Analog Audio
Analog Video

Specifications:
RCA male to RCA male
Impedance: 75 Ohms
Ultra-low Attenuation & Return Loss Belden 1694A Digital Audio Cable
Canare RCA connectors with matching flexible boots.
18AWG Solid Copper center conductor
95% TC Braid and 100% Foil Shields for great RF and EMI noise protection
Conductor DCR: 6.4 Ohms / 1000 ft.
Shield DCR: 2.8 Ohms / 1000 ft.
Hand assembled in the USA with true silver solder
