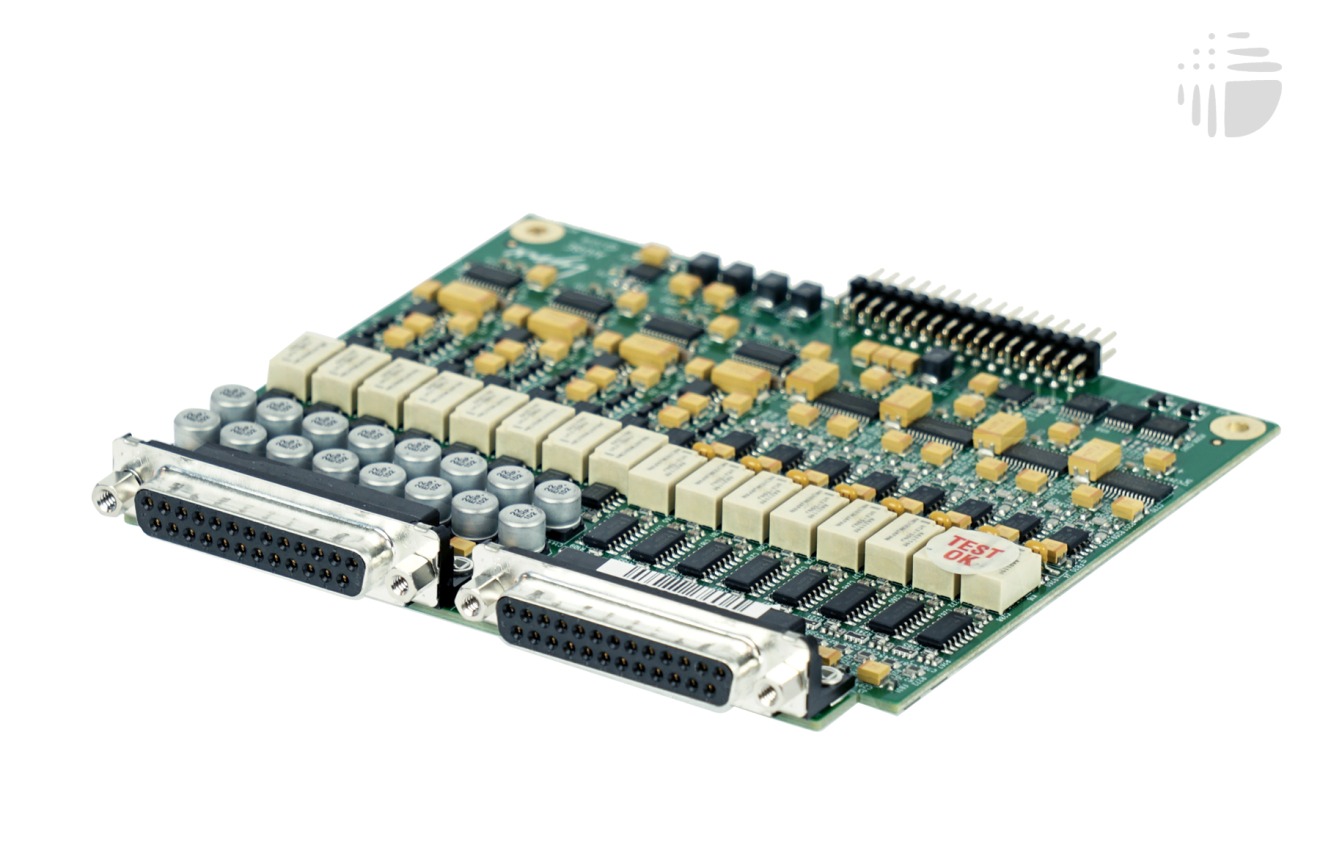

Lynx Studio Technology ANAIO8E

Productbeschrijving

Analogue I/O card for Aurora (n). Installing only by Lynx or by us.

Line In (includes A/D Conversion)
THD+N: -113dB @1kHz, -1dBFS, 20kHz filter, +20dBu trim
Dynamic range: 119dB, A-weighted, -60dBFS signal method
Frequency response: ±0.010dB, 20–20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Common mode rejection: greater than 80dB
Full-scale trim settings: +6dBV, 20dBu

Line Out (includes D/A Conversion)
THD+N: -108dB @1kHz, -1dBFS, 20kHz filter, +20 dBu trim
Dynamic range: 120dB, A-weighted, -60dBFS signal method
Frequency response: ±0.025dB, 20–20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +6dBV, 20dBu
