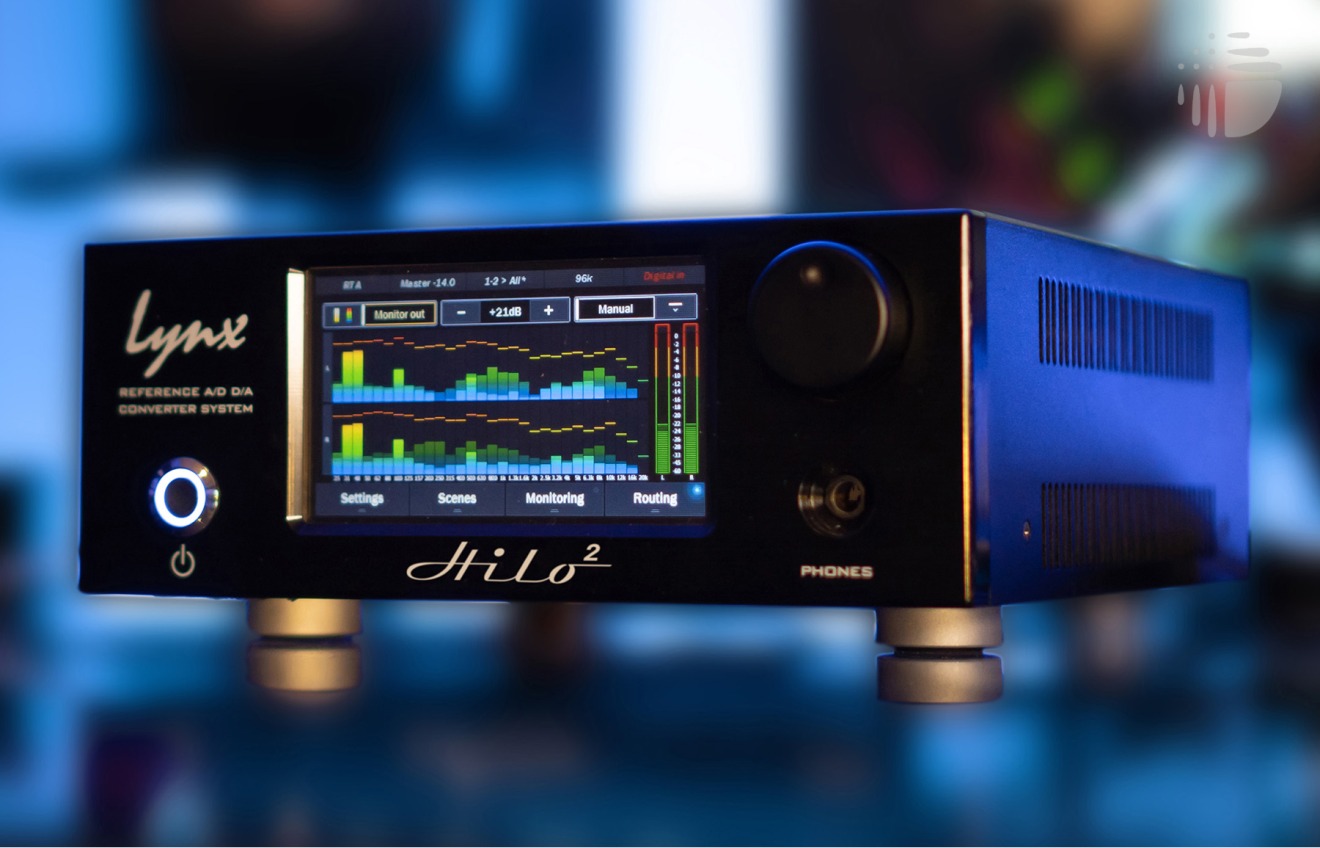

Lynx Studio Technology Hilo2 TB Black

Productbeschrijving

Two-channel 24-bit / 192 kHz Analog I/O, Headphone Amplifier • Flexible monitor controller

ANALOG INPUTS
2 Balanced XLR connections with 8 trim level settings

ANALOG OUTPUTS
2 Balanced XLR connections with 8 trim level settings
2 Balanced TRS connections Monitor Out
Headphone TRS connection

DIGITAL INPUTS & OUTPUTS
AES/EBU: Transformer-coupled XLR connector
S/PDIF via Coaxial or Optical connector
ADAT via Optical Connector (8 channels at 48 kHz)

Computer connectivity via LT-USB, LT-TB3 or LT-DANTE

LCD • High-contrast, high-brightness IPS 480x272 pixel backlit touchscreen for set up, montoring, metering, diagnostics and future features
• Allows setting of all sample rates, sync settings, signal routing, meter options and future functions
• Standard bar graph metering of all inputs and outputs, large meters selectable for any input or output, VU style meters
• Stereo 30-band Real Time Spectrum Analyzer (RTA) screen
• Updatable FPGA allows addition of future features

FEATURES • All standard sample rates from 44.1 kHz to 192 kHz
• Line Out, Monitor out, and Headphone output have their own dedicated D/A converters and independent input selection
• LSlot expansion slot for LT-USB, LT-TB3 or LT-DANTE and future connectivity options
• Onboard low-latency 32-channel digital mixer provides flexible I/O routing
• English, Spanish, French, German and Chinese menus
• SynchroLock 2™ word clock for stable word clock, maximum jitter rejection, 7 ppm accuracy

OTHER • Dual Power Option. 110 to 230 V AC or 9 to 18 V DC via battery pack or auto outlet
• Sample Rate Conversion
• DSD Record and Playback
• Multipurpose rotary control on front panel
• Computer connectivity via built in LT-USB (USB 2.0), LT-TB3 (Thunderbolt), or LT-DANTE (Dante) card
• Measures 8.50 x 3.25 x 10.00 inches (half rack), weighs 6.75 pounds

LINE IN • THD+N -116dB @1kHz, -1dBFS, 20kHz filter
• Dynamic Range 122 dB, A-weighted, -60dBFS signal method
• Frequency Resp. ± 0.01 dB, 20Hz – 20kHz
• Crosstalk -140 dB maximum @ 1kHz, -1dBFS signal

LINE OUT • THD+N -116dB @1kHz, -1dBFS, 20kHz filter
• Dynamic Range 122 dB, A- weighted, -60dBFS signal method
• Frequency Resp. ± 0.02 dB, 20Hz – 20kHz
• Crosstalk -135 dB maximum @ 1kHz, -1dBFS signal
