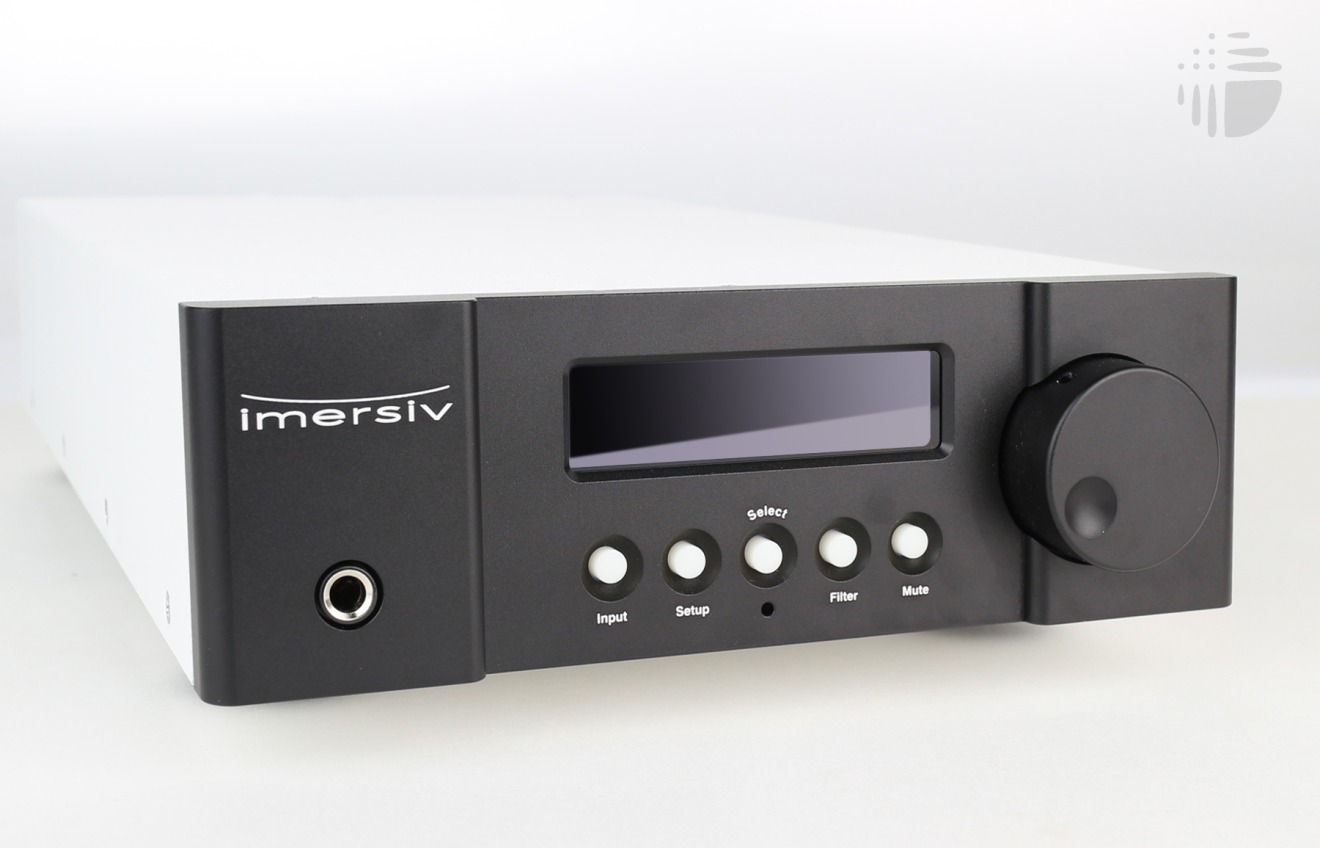

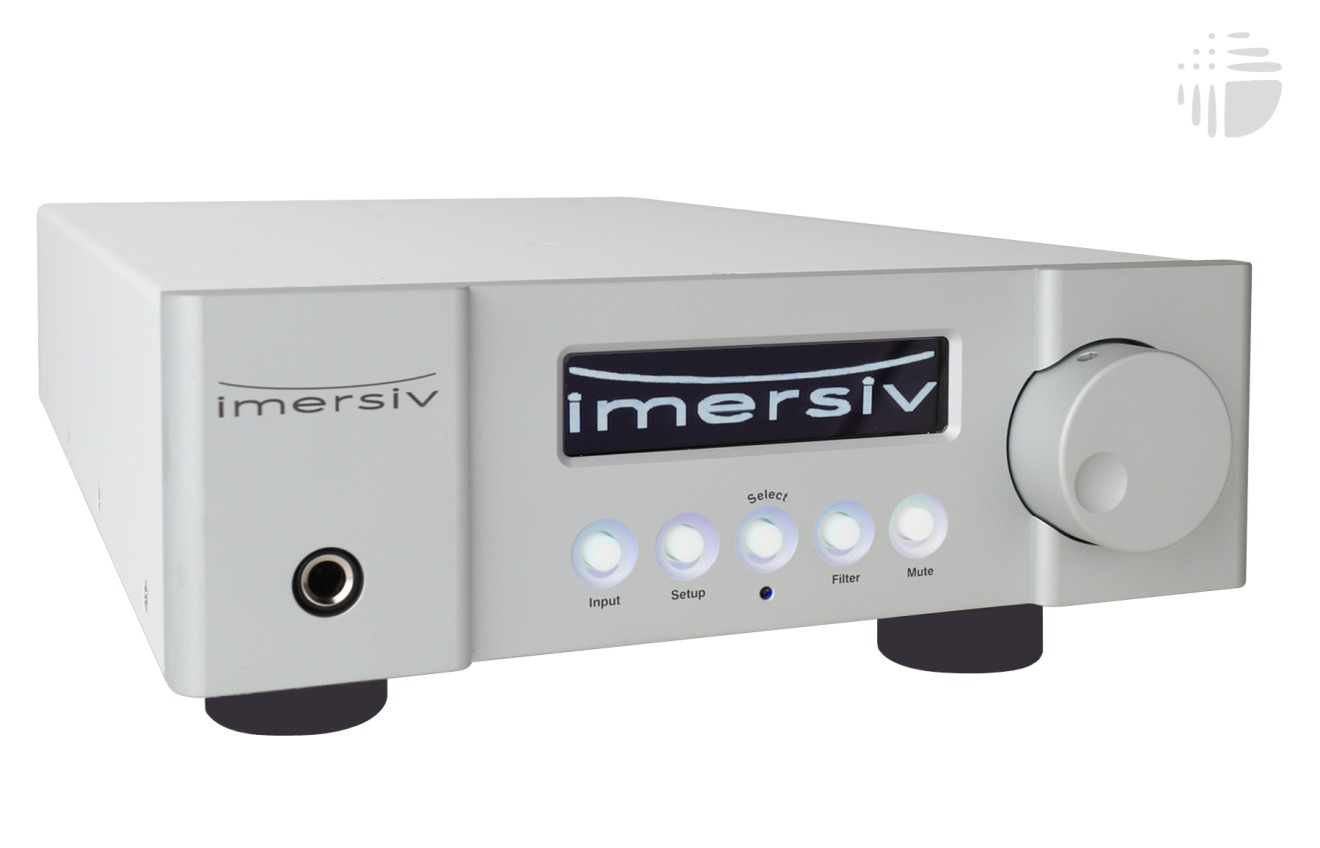

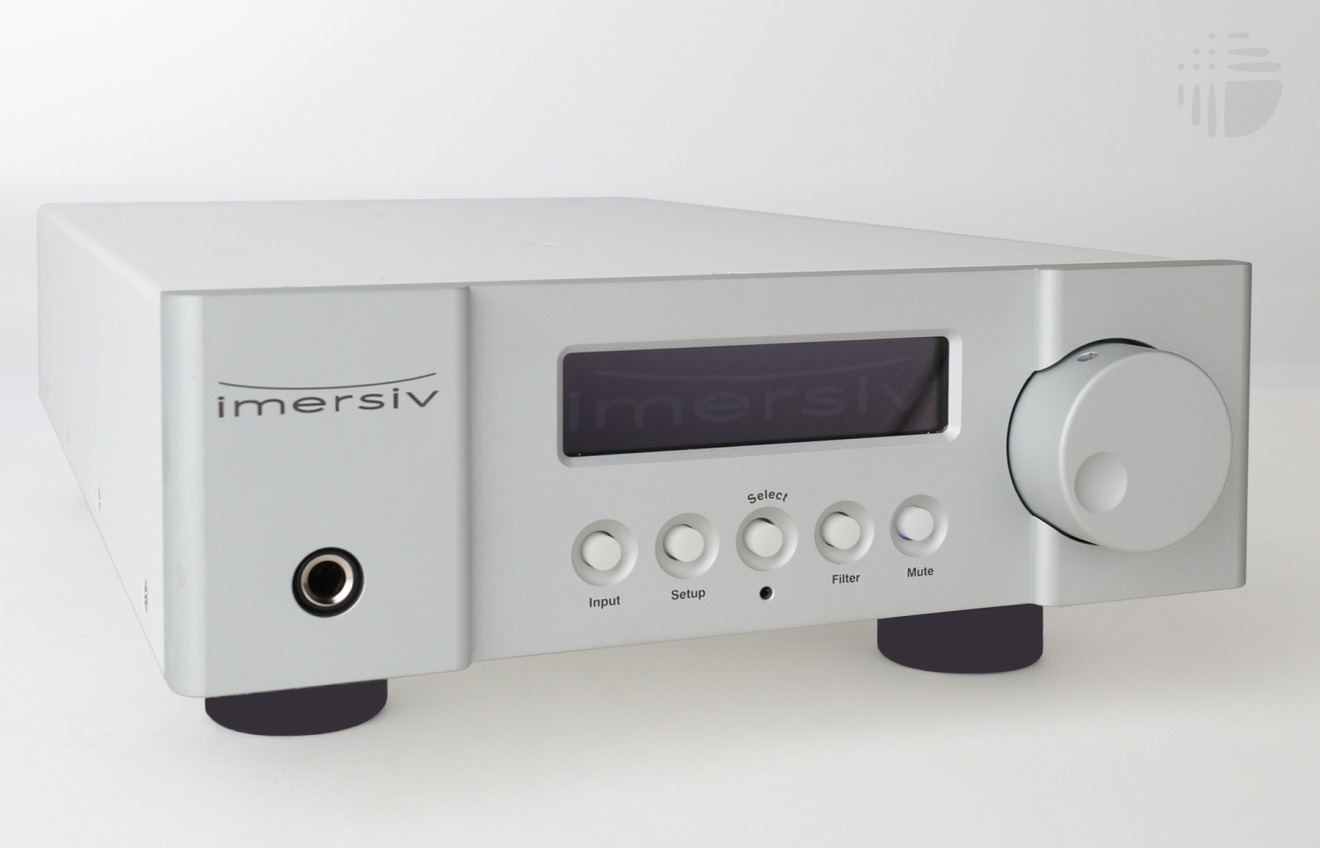

imersiv D-1

Productbeschrijving

Text by imersive.

Welcome to the most significant audio breakthrough since digital conversion. Delivering noise, linearity, and dynamic range performance so advanced that modern test equipment cannot measure it. Imersiv HDR-A is a revolutionary new multiple-path audio architecture, poised to fully re-imagine the way we capture and deliver sound, from microphone to power amplifier, and everything in-between.

HDR-A®
You may be familiar with HDR or High Dynamic Range photography. This is an image process that dramatically increases the dynamic range of photographic light. See the comparison showing a traditional photograph versus an HDR photograph. The improvement in HDR low-level detail is stunning.
Multi-path music processing is to audio what HDR is to photography. The analogy is so perfect that we’re calling it HDR-A or High Dynamic Range Audio.

In HDR photography, multiple stacked exposures are intelligently summed into a single photo, resulting in dramatically improved dynamic range. In imersiv HDR-A audio, multiple stacked sound levels are intelligently summed into a single audio file, resulting in dramatically improved dynamic range.
The image comparison is directly analogous to the improvement in low-level audio clarity and atmospheric depth experienced with imersiv HDR-A multi-path processing.

Realization
Perfecting HDR-A took over 10 years of continuous research and development. The graph shows how it works.
Path 1 is an audio signal with 90dB of dynamic range, from 0dB to 90dB. Path 2 is an audio signal with 100dB of dynamic range, from 80dB to 180dB. When paths 1 & 2 are combined, the resulting dynamic range is 180dB, from 0dB to 180dB. That’s multi-path high dynamic range audio.

Multi-path HDR-A offers two major advantages over traditional single-path methods. First, it significantly reduces noise and distortion (THD). The imersiv D-1 achieves a remarkable 40 nanovolts of broadband noise, which is around 40 dB lower — 100 times quieter — than today’s best DAC designs. In fact, the D-1’s self-noise is 25dB below the measurement capability of today’s leading test equipment, such as the APx555B (see FAQ).

The second advantage is untethered headroom. HDR-A technology allows us to boost high-path headroom to any level without affecting our quiescent self-noise. The D-1 provides +22dBu (10 volts) of ISO-free headroom while maintaining its profoundly low 40nV self-noise floor. This results in a true broadband, unweighted linearity and dynamic range of 28 bits (168dB).

Multi-path is the next standard of audio architecture, from microphone to power amp, and everything in between.


Purity
Acoustic recording engineers — whether in film scoring, classical music, jazz, or other genres — understand that spatial information is conveyed in the quiet moments: in the space between notes; in the subtle decay of a piano chord just before it fades from perception; and in the brief instant a note is first struck, before it reaches its peak. Quoting one of today’s top recording engineers, “On the music side, everything in the quiet neighborhood is where we get ‘the life’ and spatial cues in a recording. Distortion of lower-level partials is the very first casualty of any acoustic recording.”

Extraordinarily pure low-level audio is a key reason why HDR-A topology delivers far greater spatial and timbral reality than legacy single-path audio. When audio levels drop below a certain threshold, HDR-A begins processing in a new DAC core with dramatically lower distortion and noise performance.

See diagram. Compare a low-level, perceptible sine wave on the D-1 multi-path DAC versus a high quality single-path DAC. Single-path waveforms are jaggy and noisy. We hear this as poor image definition, atmospheric collapse, and a blurring of complex timbres — while HDR-A “new core” signals remain pure and natural, even far below the limits of human hearing.

Pedigree
Built upon 35 years of innovation in pro-audio design and U.S.-based manufacturing, the imersiv D-1 embodies a heritage of excellence that has shaped the sound of our era’s most celebrated recordings. Millennia’s 2019 induction into the NAMM Technology Hall of Fame acknowledges our lasting influence and commitment to redefining professional audio. We adhere to aerospace-grade design, build, and QA standards, required by our esteemed clients — ranging from classical music recording engineers, broadcast engineers for major events like the Grammys and Oscars, and film scoring stages from Hollywood to Mumbai. It’s no surprise that pre-owned Millennia products consistently achieve top resale value within their professional categories.
