PSI Audio AVAA C20 Black ex. demo Demo Demo

Productbeschrijving

*** B-STOCK / DEMO ***
B-Stock / Demo betekent dat een product niet meer hagelnieuw in de verpakking zit. Het kan zijn dat het product is teruggestuurd door een klant of dat het heeft gediend als tijdelijke vervanging van een defect model. Het kan ook zijn dat een product door ons is gebruikt voor demonstratiedoeleinden. Meestal heeft zo’n product in onze showroom gestaan maar het kan ook zijn dat het product aan een of meerdere klanten is uitgeleend. B-Stock / Demo apparatuur is altijd is goede staat en volledig werkend. Tenzij anders vermeld wordt hierop 12 maanden garantie verleend gerekend vanaf de aankoopdatum.

=================================================================

*** B-STOCK / DEMO ***
B-Stock / Demo means a product is not brand new. It might no longer be packed in its original box. It can, for example, be a product that has been returned by a client after a try-out period or that it has been served as a temporary substitute for a product being under repair. It can also be used by us for demonstration purposes. B-Stock / Demo equipment is always in good working order and is without noteworthy damages. Unless stated otherwise, we will grant a warranty period of 12 months from invoice date.

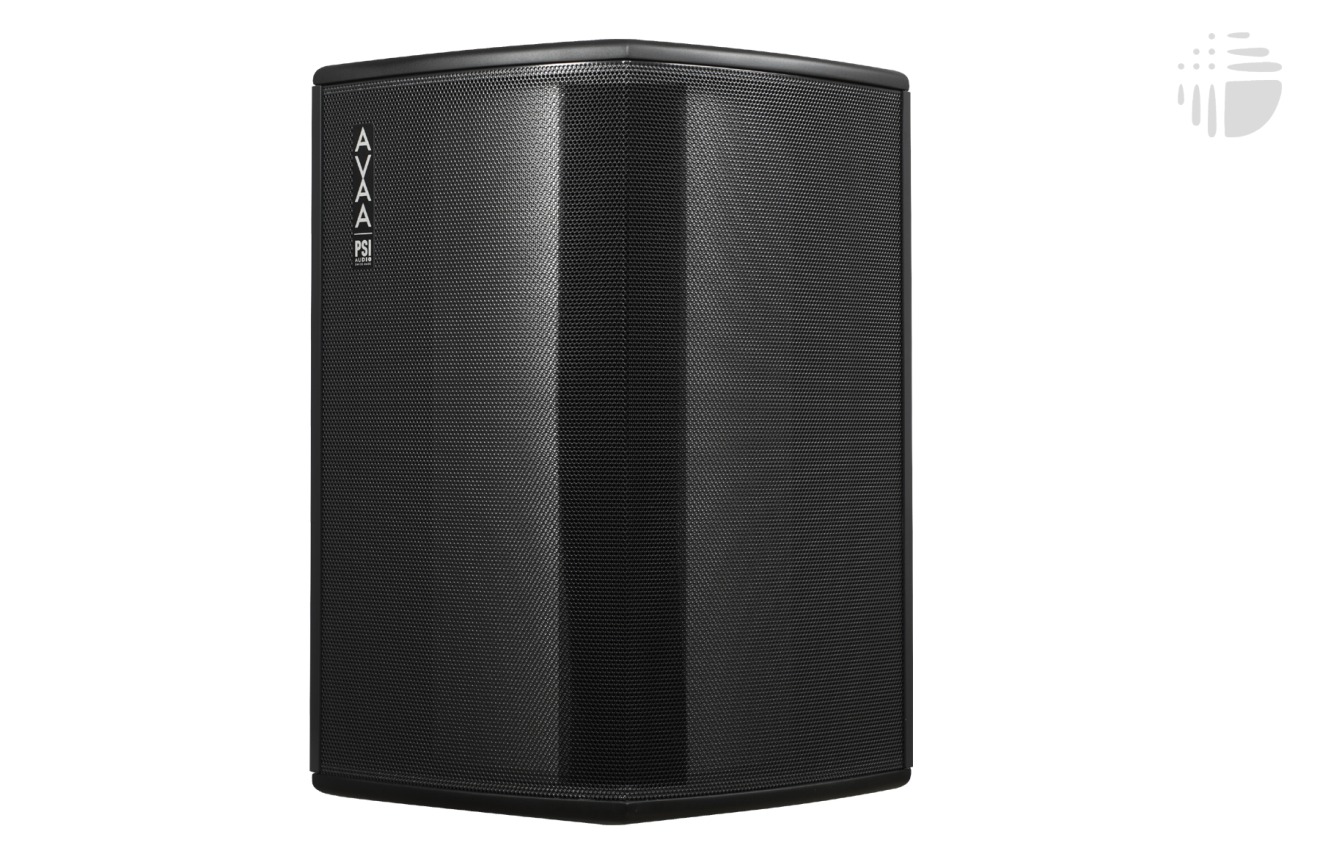

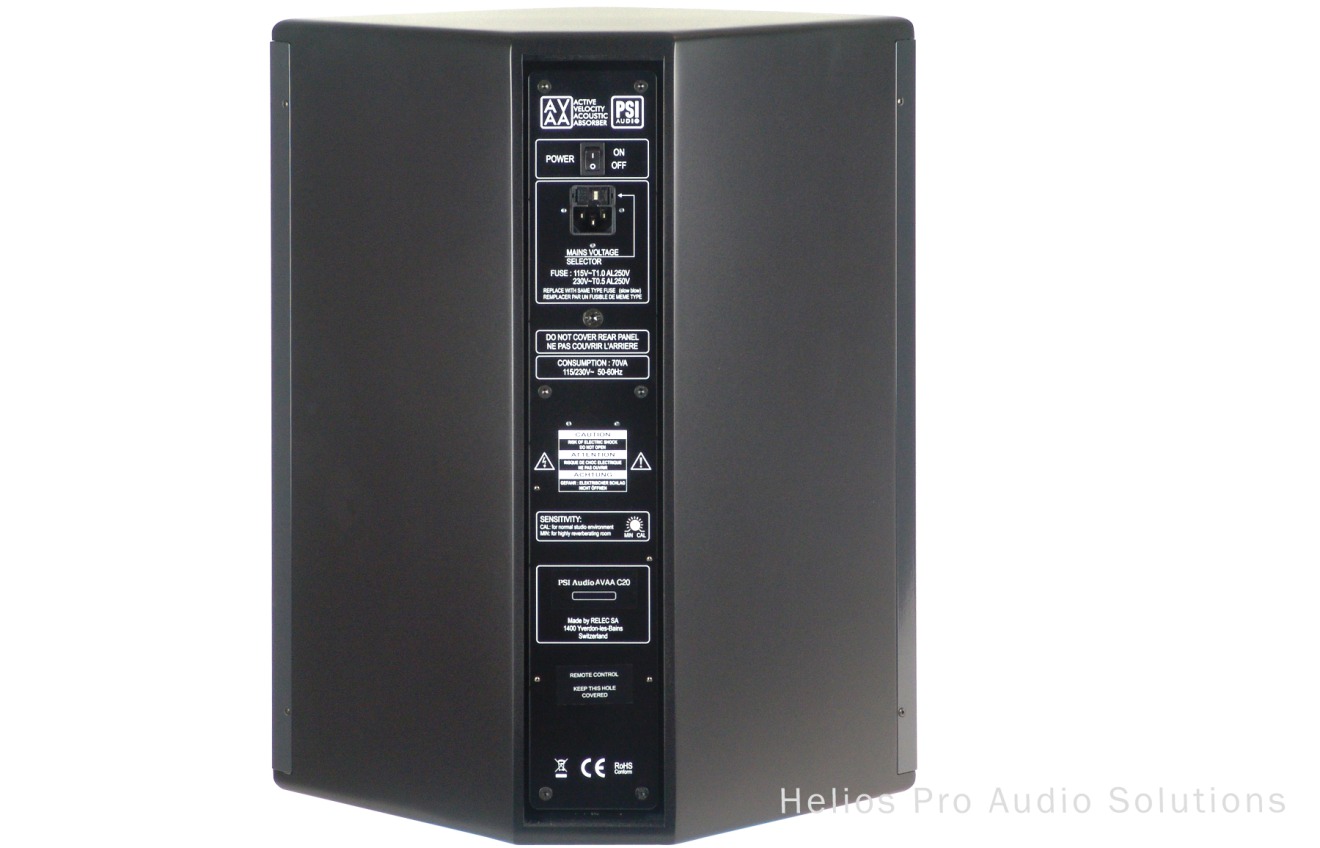

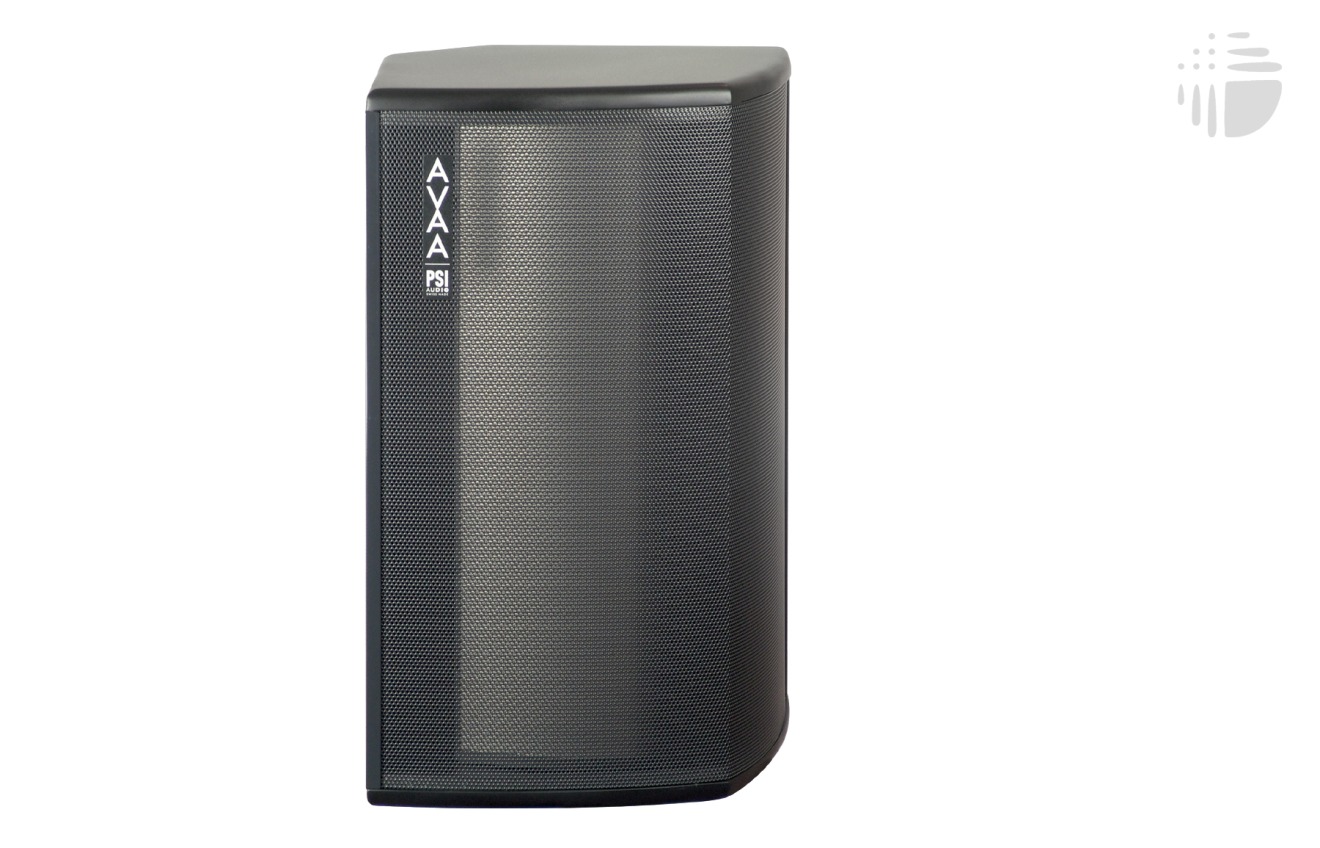

PSI Audio engineers have again used their creativity, knowledge and experience to develop a revolutionary product: the AVAA (Active Velocity Acoustic Absorber).

The AVAA actually acts as an "anti-wall" by neutralising the negative reflective effects of the walls. Through PSI Audio's patented technology, it will transform acoustic pressure into acoustic velocity and absorb it over a large range of frequencies.

With a surface of 0.2 m2, an AVAA is as effective in absorbing low frequencies as 1.5 m2 of perfect sound absorber (such as a hole in the wall).

Key points:
- The AVAA absorbs room modes between 15 and 150 Hz
- 2 AVAAs will make a significant difference in normal sized studios
- 4 AVAAs will allow to achieve even better results in large studios
- Adequate AVAA positioning is easily achieved after a few trials
- No setting are required only ON/OFF

What does the AVAA do?
The AVAA is a solution for room mode problems. The AVAA is designed to absorb the standing modes between 15 and 150 Hz in a room. It will do so just like passive absorbers but in a much more efficient way and using up much less space. Each operating AVAA will have the same effect as a hole in the wall much larger than the dimensions of the AVAA (that is 0.2 m2). The exact ratio will depend on the frequency and environment but typically range between 5 and 20.

The AVAA will affect the impedance of the air and “suck” low frequencies around it. Therefore the best position to place an AVAA is in the most rigid corners as that is where all room modes will be most present. It is important to work on the positioning of loudspeakers and listening, as the AVAA will have little effect on inevitable first reflections.

How does it work?

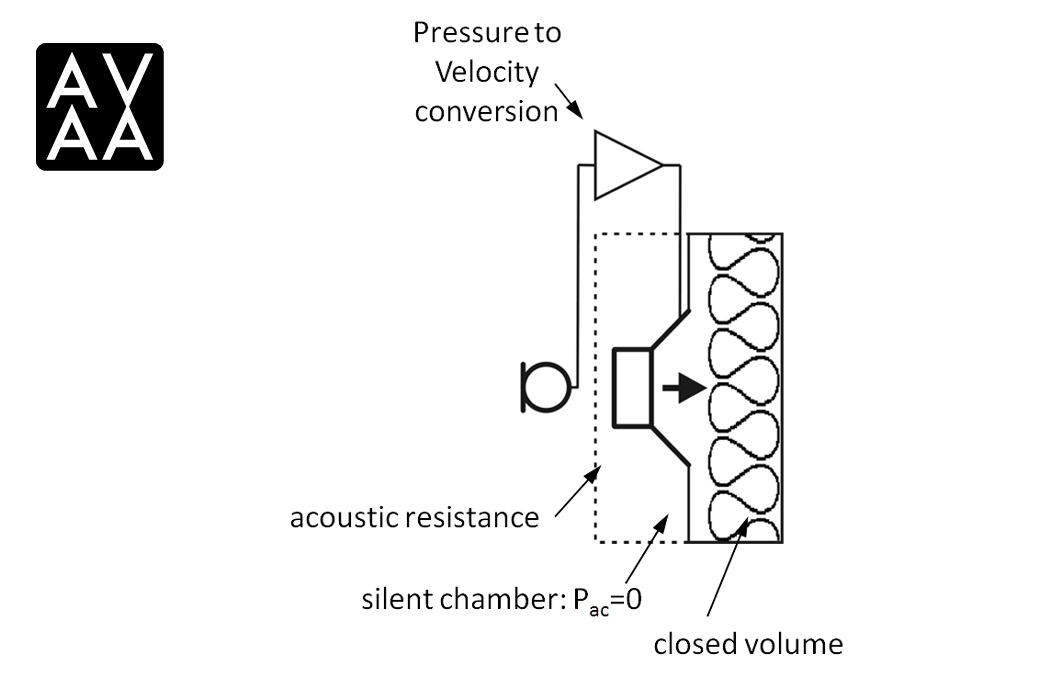

A microphone will measure the acoustic pressure in front of an acoustic resistance. The acoustic resistance is designed to let air through but reducing significantly the pressure. Behind the acoustic resistance, a transducer membrane is driven to absorb the volume of air going through the acoustic resistance as well as ensuring a specific acoustic impedance in front of this acoustic resistance. When in function, this acoustic impedance in front of the acoustic resistance is significantly lower than in ambient air and therefore acts as a pressure sink. The acoustic impedance of the air is affected typically over a radius of 1 to 1.5 m around the AVAA. This explains how the AVAA can be more absorbent that its actual surface of perfect absorber.
It is designed to absorb frequencies between15 and 150 Hz and is most effective on room modes that are the result of multiple reflections.

What does the AVAA not do?
The AVAA is a solution for room modes below 150 Hz and absorbs low frequencies only. It is therefore not a total solution for acoustically bad rooms. For best results, it needs to be combined with passive absorption in higher frequencies. The AVAA will only absorb pressure waves within a radius of 1 to 1.5 m around it in these frequencies. It is therefore not a solution for the first reflections a room might have. Correct positioning of speakers and listening position in the room remains necessary.

What effect will the AVAA have in my room?
The AVAA will have the same effect, on frequencies from 15 to 150 Hz, as opening a window about 5 to 20 times the size of the AVAA. This will impact sound in the time, frequency and space dimensions. - Time: it will significantly reduce reverberation time in these frequencies especially on room modes.
- Frequency: with more precise and tighter bass, the masking effect of higher frequencies is reduced. Details in higher frequencies also become clearer.
- Space: with less indirect sound in the room, the location of the sound is more accurate making the sound image more precise.

How many AVAAs do I need?
2 AVAA will have a significant effect in most rooms. Depending on the dimension and type of room as well as the result required, between 2 and 4 AVAAs are necessary for most normal size rooms (20 and 80 m2) For very small rooms a minimum of two AVAAs is still recommended to have a symmetrical effect. For larger rooms please consult an acoustician or PSI Audio directly.

Where to place the AVAAs in a room?
The most effective position for the AVAA is in a location where the walls contribute most to the room modes that are disturbing in the listening position. In practice it is very easy to position the AVAA effectively after a few comparative trials. The starting position is in corners behind the source speakers as this is the most effective position in a majority of cases. However, depending on the structure of the room boundaries and listening position, other AVAA locations might turn out to be more effective. Try positioning them in different corner or against walls and evaluate effectiveness.

In practice it is quick and easy finding the best location by following the basic rules:
- AVAAs positioned in corners are more effective
- AVAAs located against rigid walls are more effective

Bear in mind that the AVAA is designed to absorb long wavelengths and therefore there is little very little to gain by positioning the AVAA with great precision.

What are the advantages of the AVAA?
- It is an efficient solution for room mode problems
- It is stable with no settings required
- It can be turned ON and OFF to alter the acoustic environment
- It an easily be moved into a different room
