ATC Consumer Hifi SPH2

Product description

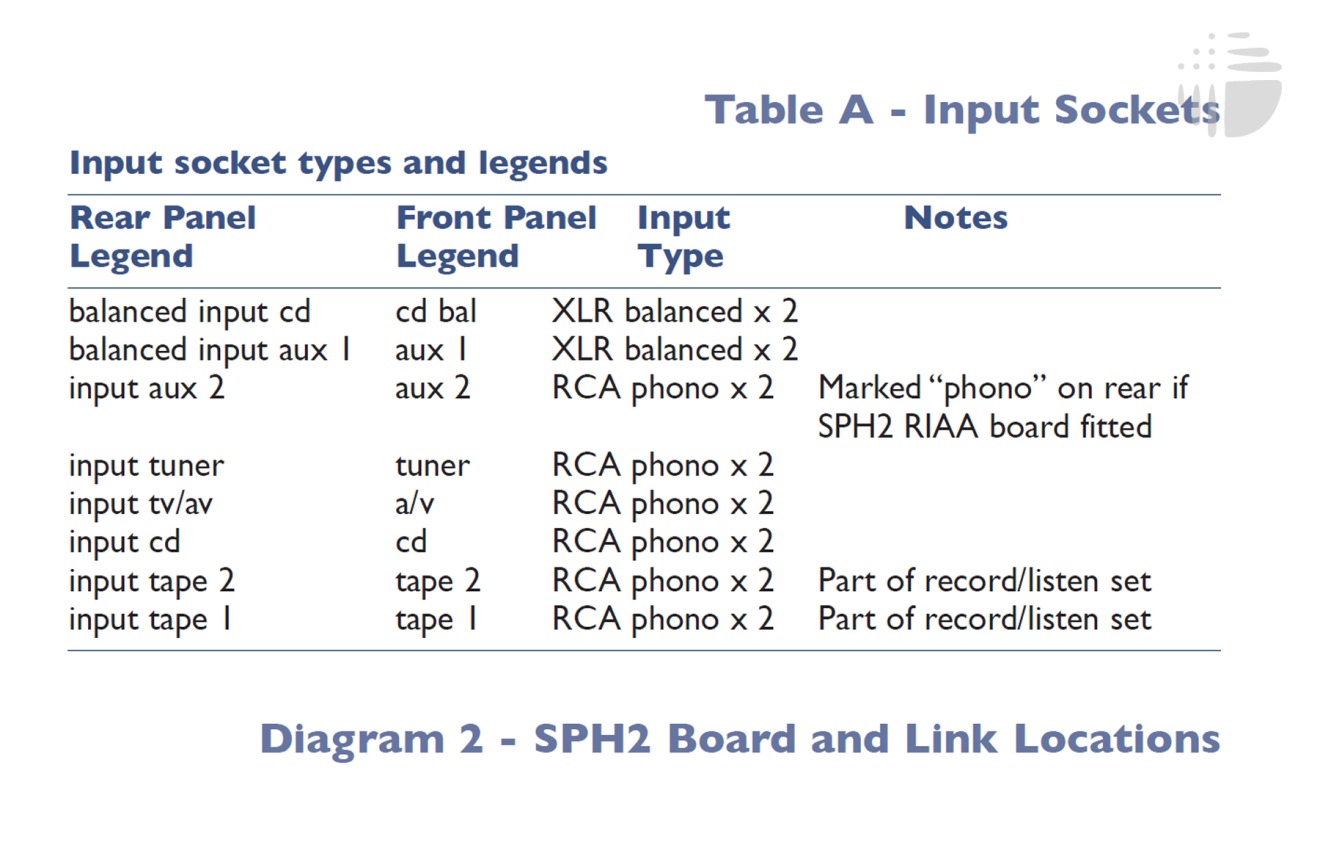

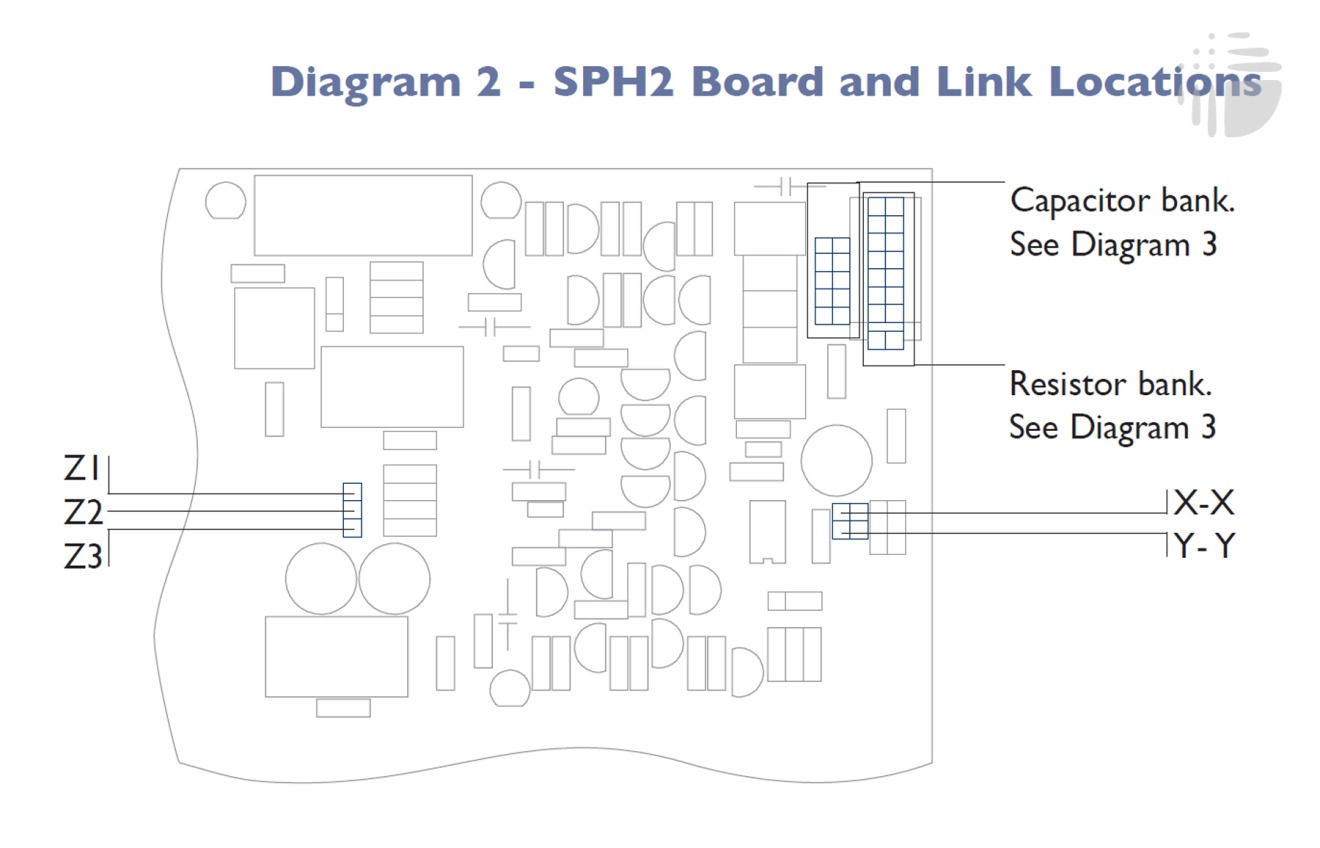

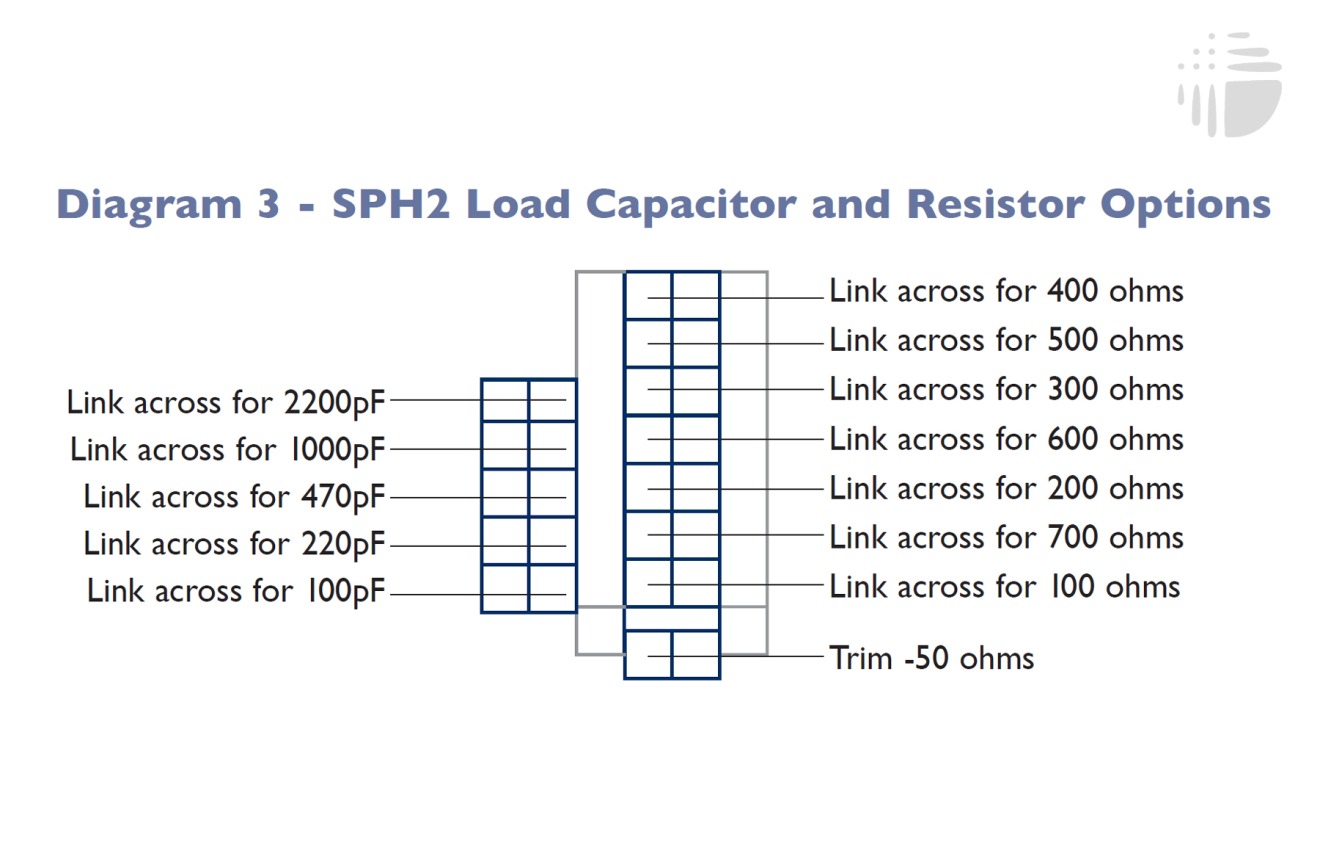

If the SPH2 RIAA Vinyl Board is installed in a SCA2, the AUX 2 input sockets will function as a high-sensitivity phono input. The RIAA circuitry can be configured to accommodate a wide selection of phono cartridge types by setting combinations of board mounted links. Access to the board is gained by removing the top panel of the preamplifier. The SPH2 board is split into two identical channels. A variaty of links settings can be used for gain and matching options with the applied cartridge.
