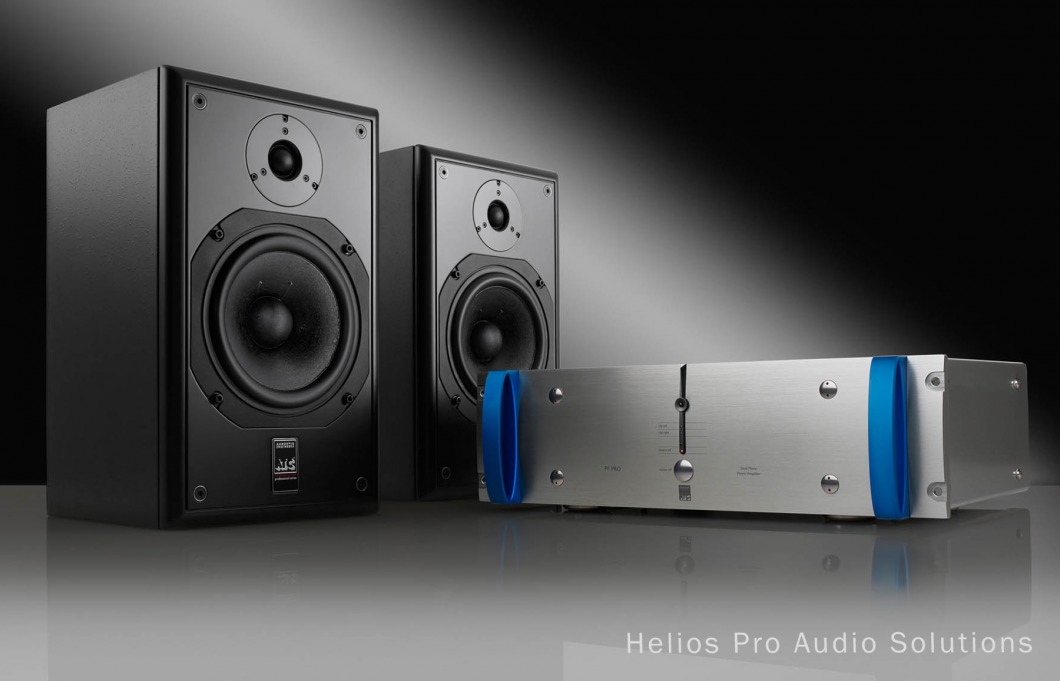

ATC Professional SCM12P PRO

Product description

As an all-new design, the SCM12 Pro offers ATC's acclaimed performance at a lower price point without compromising component quality and achieves this in a more compact, installation-friendly footprint ideally suited to nearfield monitoring as well as multichannel music and post-production applications.

The SCM12 Pro is ideally suited to:
- Nearfield monitoring in small-to- medium sized control rooms.
- Multi-Channel Systems.
- Replacing aging passive studio monitors.
- Fixed Install.


Overview
Compact high performance 2-way studio monitor.
Ideally suited to:
– critical near-field listening applications in all control rooms
– LCR surround monitoring in small-to-medium control rooms.
Proprietary ATC 150mm/6? CLD Mid/Bass Driver.
Proprietary ATC 25mm/1? Dual Suspension Tweeter.
6 year warranty.

Specifications
Drivers: HF ATC 1"/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
LF ATC 6?/150mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm)
Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400x238x235mm/15.7"x9.4"x9.3"
Weight: 11kg/24lbs (per cabinet)
