Lake People G103D4 Dante

Product description

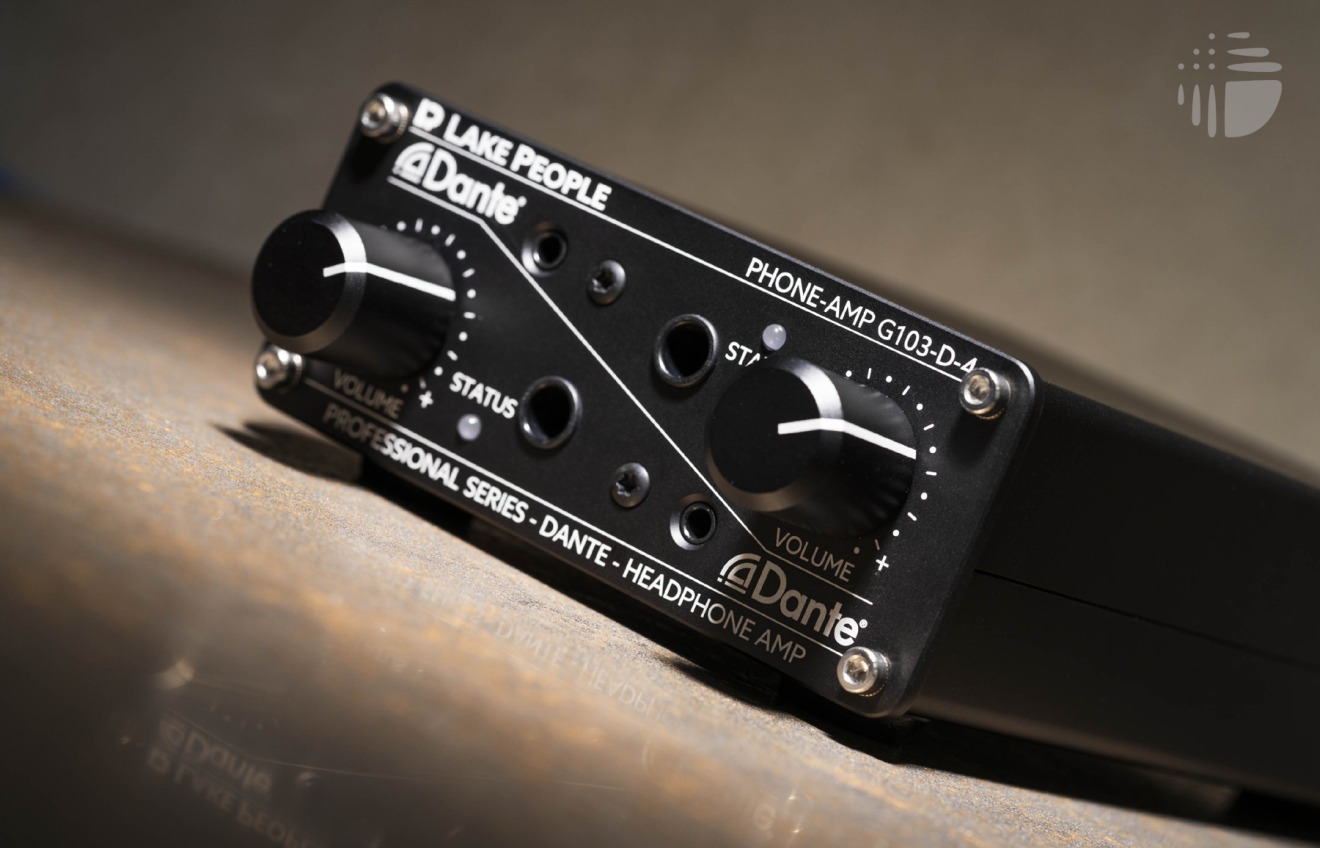

The Lake People G103-D-4 combines a powerful compact headphone amplifier with versatile DANTE integration capabilities.

Key qualities are
• outstanding sound performance
• easy and flexible integration
• reliable operation
• durable build quality (Made in Germany)
• developed for professional applications

The Lake People G103-D-4 is based on the G103 with all its core strengths:
• flawless stereo reproduction
• powerful amplification
• Pre-Gain for tailoring the volume control to the preferred headphones
• ultra-low distortion and noise
• compact format
• internal safety features to protect the device, the connected headphones and the listener
• very robust construction
• can be installed under desks and on mic stands with optional brackets

High-quality D/A conversion
• 24 Bit / 192 kHz conversion
• 105 dB SNR, 0.01% THD

Outstanding analogue amplification
• converted audio is buffered, attenuated in the analogue domain and forwarded to powerful amps
• Alps volume control
• great channel balance, low crosstalk
• practicallyindestructibleamplifiers

Pre-Gain
• switchable via internal jumpers
• allows for additional +6 dB and +12 dB gain for optimal adaptation of demanding headphones
• improves volume control travel and tailors noise

Flexible power supply
• USB-C standard power input
• USB-B alternative
• PoE

Flexible outputs
• ¼“ (6.3-mm) headphone jack per stereo channel
• 3.5-mm headphone jack per stereo channel
• all outputs can be driven simultaneously

Broadcast
easily integrate multiple work stations and supply
them with high-quality audio monitoring

Live
provide high-quality monitoring to techs and
behind the stage effortlessly

Studio
distribute monitoring to many people in close proximity, e.g. orchestral recordings

Voice over
supply high-quality audio to voice actors via just one Ethernet cable

Technical Data | Phone-Amp G103-D-4
Input: Dante digital audio
Connector: RJ45
Channels: 4 (2x stereo)
D/A converter: 24 Bit (up to 192 kHz)
Analogue level: +9 dB for 0 dBFS
Gain: +6 / +12 dB, int. selectable
Frequency range: 5 Hz ... 90 kHz (-0,5 dB)
Dynamic range: > 105 dB (A-wtd)
THD+N: < 0.01 % (500mW / 100R)
Crosstalk: < -80 dB (@ 15 kHz)
Damping Factor: 50 (load 50 Ohms)

Max. output level:
9.5 Veff in 600 ohms = 115 mW
8.1 Veff in 300 ohms = 220 mW
7.1 Veff in 100 ohms = 500 mW
6.1 Veff in 50 ohms = 750 mW
5.2 Veff in 32 ohms = 830 mW
2.7 Veff in 16 ohms = 440 mW

Outputs: 1x 1/4”, 1x 3.5mmphone jacks
Power supply: PoE / USB-B, -C (5V max. 10 VA)
Case Dimensions: 105 x 42 x 165 mm (W x H x D)
Front Panel: 108 x 45 mm
Case Material: black anodized aluminium
