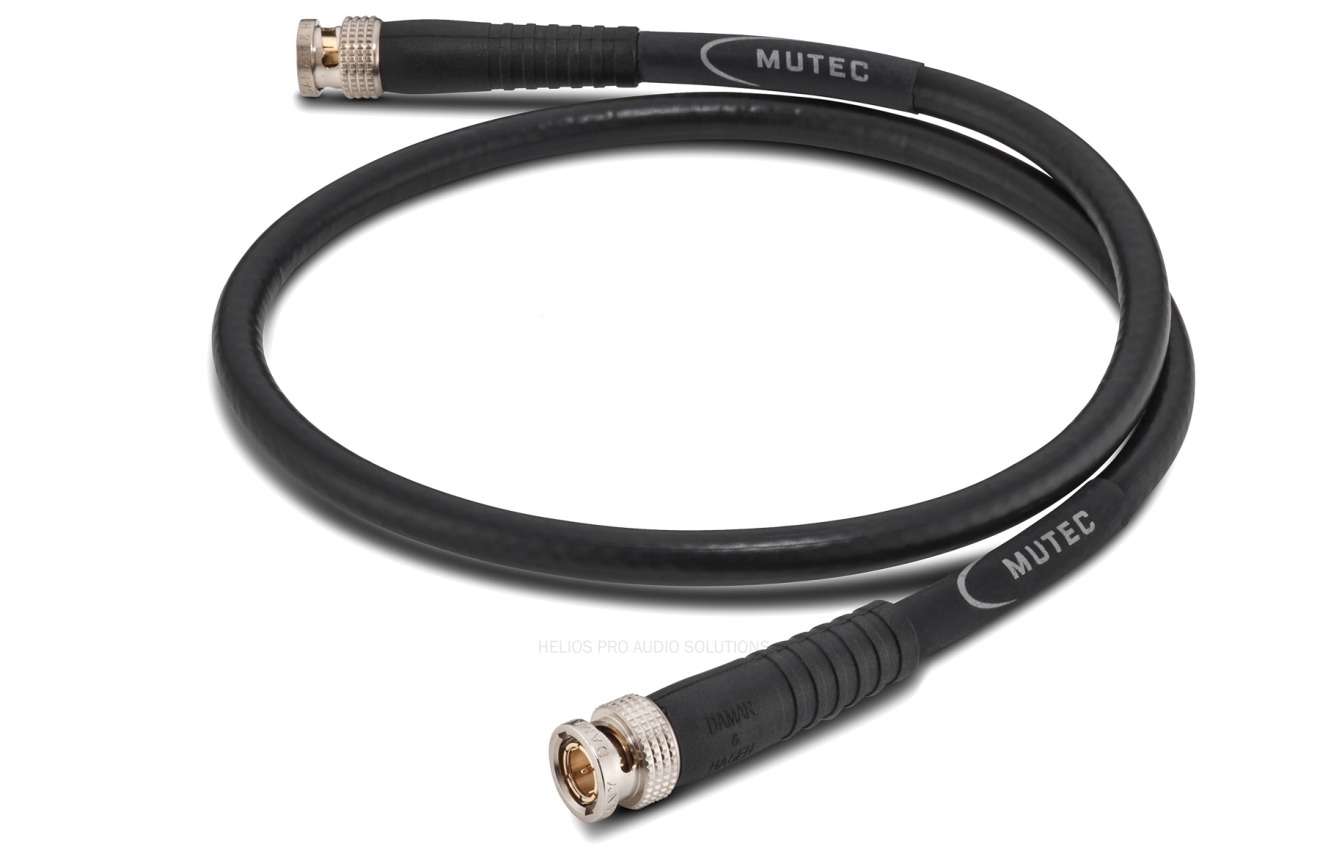

MUTEC Prime Select BNC/BNC 1.0

Product description

The MUTEC PSC 75 series consists of three coaxial cables that guarantee a characteristic impedance of 75 ohms. They differ by varying connector combinations for specific usage scenarios: RCA/RCA, RCA/BNC, BNC/BNC. These cables are perfectly suited transmitting 10 MHz clock signals between a MUTEC REF series master clock and external devices as well as transferring S/P-DIF or AES3id digital audio or AES11id reference syncs. Please choose your cable as short as possible to minimize signal loss and interference.

- Impedance: 75 ohms
- Length: 1.0 m
- Interfaces: 2 x BNC connector (Damar & Hagen)
- Cable diameter: 8.0 mm

Features:
- Coaxial construction
- Specially designed triple shielding
- Lowest attenuation
- Oxygen-free silver-plated solid core conductor
- Gas foamed dielectric
- Guaranteed 75 ohm characteristic impedance
- Complete, accurate, fast data, low jitter transmission
- Easy handling due to flexible material
- 8 mm cable diameter
- UV-stabilized S-PVC outer jacket
- Solid craftmanship
- High contact reliability
- 75 ohms Damar & Hagen full metal BNC connectors, hard gold-plated in contact area
- 75 ohms Neutrik RCA connectors, hard gold-plated in contact area (with collet strain relief)

Reliable Craftsmanship
Handmade in Germany, Prime Select Cables do not follow any esoteric "voodoo" philosophies, but are based on technically relevant characteristics that can be reproduced at any time – just as it is known and expected from MUTEC. They combine high quality cable material with first class connectors and precisely meet the specifications required for the intended use. Our developers have meticulously ensured that the signal transmission quality remains consistent, the square-wave signals retain their shape and are not slurred. MUTEC Prime Select Cables guarantee complete, accurate and fast transfer of digital audio and clock signals.

75 Ohms Characteristic Impedance
A constant characteristic impedance of 75 ohms is particularly important for the transmission quality of an S/P-DIF signal or the 10 MHz reference clock signal* between input and output. This is determined not only by the cable material, but also by the connector. Both must ensure the required 75 ohms termination all the way through. Reflections within the cable, which can cause unsteady delivery of the data packets (= jitter), have to be prevented. This problem is avoided with a MUTEC coaxial cable. A characteristic impedance of 75 ohms is guaranteed.

Please note *: For proper connection of devices with a 50 ohm impedance used in their reference clock transmission, we offer a separate cable series: PSC 50 BNC/BNC.

Triple Shielding
The cable material of a MUTEC Prime Select Cable is triple shielded in an unique way – by two robust AL/PTE foils and a tight tinned copper braid. This provides the lowest possible attenuation values and comprehensive shielding from electrical interference fields. With a diameter of 8 mm, the MUTEC PSC 75 is slim, flexible and yet robust. An oxygen-free, silver-plated solid core wire with lowest tolerances acts as conductor. This is embedded in a flattened gas-foamed insulation.
