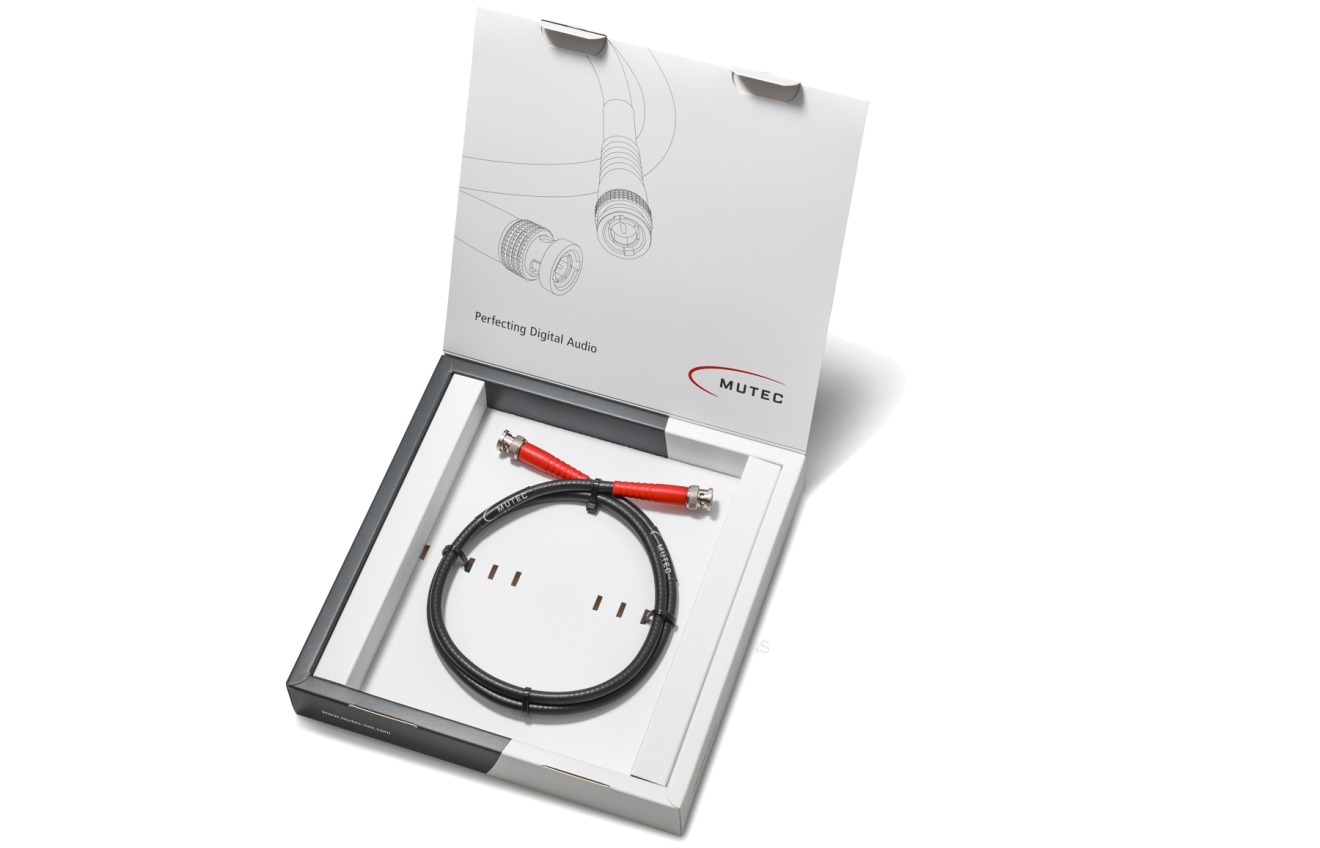

MUTEC Prime Select BNC 50R 0.75

Product description

This MUTEC PSC 50 BNC/BNC coaxial cable guarantees a characteristic impedance of 50 ohms. It is perfectly suited for transmitting 10 MHz clock signals between a MUTEC REF series master clock and external devices with an impedance of 50 ohms. Such an impedance can be found in the following clock receiving devices: D/A converter, streamer, network switch, CD player. Please choose your cable as short as possible to minimize signal loss and interference.

- Impedance: 50 ohms
- Length: 0.75 m
- Interfaces: 2 x BNC connector (Damar & Hagen)
- Cable diameter: 7.3 mm

Features:
- Coaxial construction
- Dual shielding
- Lowest attenuation
- Low oxygen copper conductor
- Low loss gas foamed PE-LCC dielectric
- Guaranteed 50 ohms characteristic impedance
- Complete, accurate, fast, low jitter data transmission
- Easy handling due to highly flexible material
- 7.3 mm cable diameter
- UV-stabilized PVC outer jacket
- Solid craftmanship
- High contact reliability
- 50 ohms Damar & Hagen full metal BNC connectors, hard gold plated in contact area

Reliable Craftsmanship
Handmade in Germany, Prime Select Cables do not follow any esoteric "voodoo" philosophies, but are based on technically relevant characteristics that can be reproduced at any time – just as it is known and expected from MUTEC. They combine high quality cable material with first class connectors and precisely meet the specifications required for the intended use. Our developers have meticulously ensured that the signal transmission quality remains consistent, the square-wave signals retain their shape and are not slurred. This MUTEC Prime Select Cable guarantees complete, accurate and fast transfer of clock signals.

50 Ohms Characteristic Impedance
A significant number of clock-receiving digital audio components do not carry the established impedance of 75 ohms*. Rather, these are designed for a 50 ohms impedance. It is essential to take this into account. Common 75 ohms cables cannot guarantee an optimal transmission of the 10 MHz reference clock to a 50 ohms clock input. This is why MUTEC offers the PSC 50 BNC/BNC. It guarantees a constant characteristic impedance of 50 ohms* between input and output. This is determined not only by the cable material, but also by the connector. Both must ensure the required 50 ohms all the way through. Reflections within the cable, which can cause unsteady delivery of the data packets (= jitter), have to be prevented. This problem is avoided with this MUTEC coaxial cable. A characteristic impedance of 50 ohms is guaranteed.

Please note*: For proper connection of devices with a 75 ohms impedance used in their reference clock or word clock transmission, we offer a separate cable: PSC 75 BNC/BNC.

Double Shielding
The cable material of the MUTEC PSC 50 BNC/BNC is double shielded by a coated copper foil in combination with a copper braiding. By means of a low-loss PE-LCC dielectric, low attenuation is achieved. A 19-core stranded wire of low-oxygen copper acts as the conductor. With a diameter of 7.3 mm, the cable is slim, flexible and yet robust.

High Quality 50 Ohms Connectors
As BNC connector MUTEC uses the product of a German special manufacturer with decades of long-term experience. The mechanically extremely robust full metal connectors are hard gold-plated in the contact area, providing a constant contact pressure over their entire lifespan and meet the required characteristic impedance of 50 ohms with low return loss.
